Roland TR-33

The mounting tells the story.

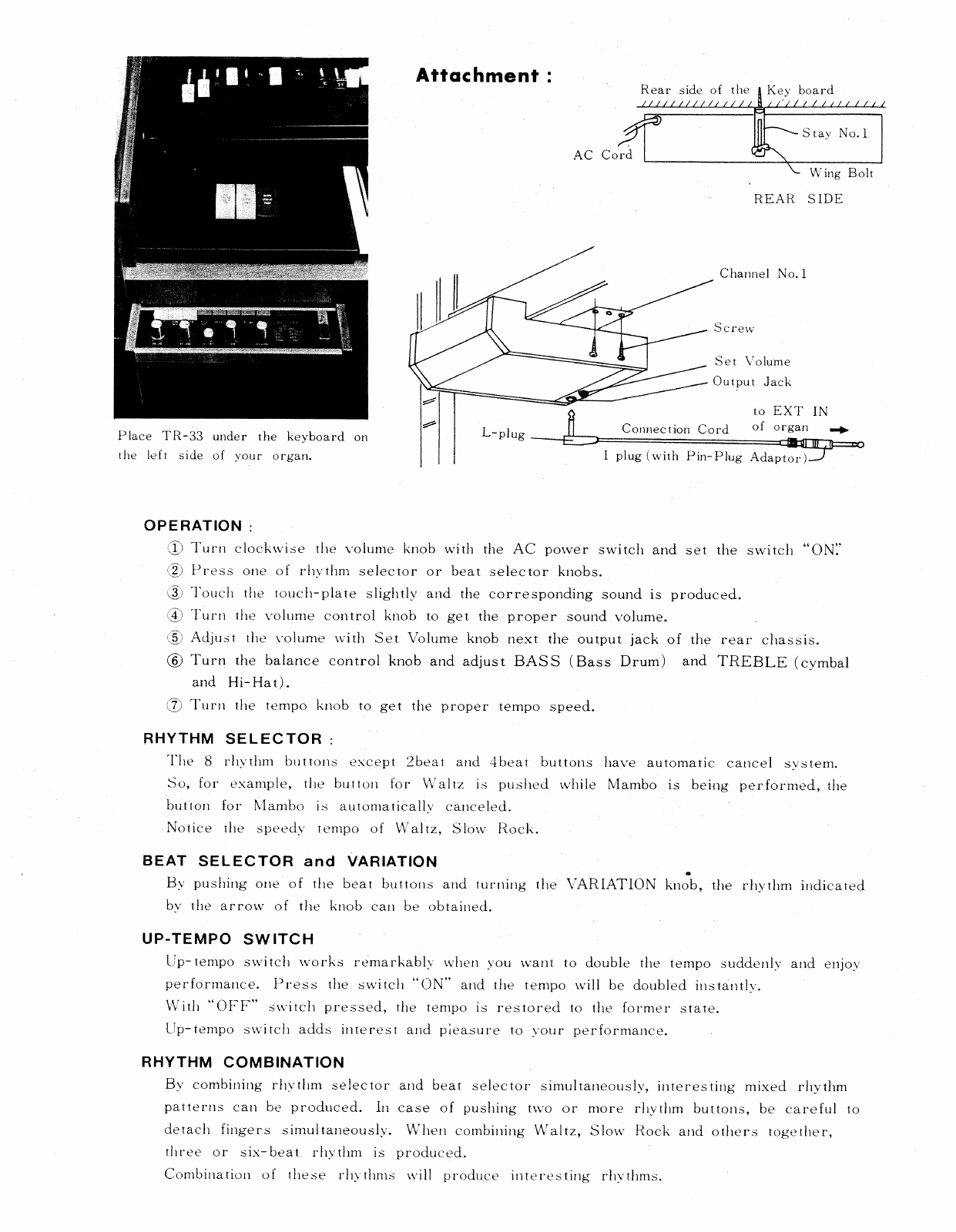

The factory drawing puts the TR-33 beneath the left side of an organ. Two mounting stays hold its small cabinet below the keyboard. A wing bolt allows the face to be brought into a comfortable working position. A cable connects the rhythm instrument to the organ’s external input. The accompaniment becomes part of the player’s immediate surroundings.

That location changes how to read the controls. The player does not have to leave the instrument to set a rhythm going. A touch plate starts or stops the pattern; the beat lamp provides a visible pulse. The machine is arranged around somebody whose hands already have music to make.

Roland places the TR-33 among its first products in 1972, alongside the portable TR-55 and tabletop TR-77. Those three forms offered different places for a rhythm section in an existing musical setup. The TR-33’s identity is the organ mounting, rather than a smaller version of the later studio workstation.

A June 1978 Japanese catalogue still lists the instrument, with twenty rhythms and ten percussion voices. Continued catalogue presence gives a later view of the product line; it does not by itself fix a last production date. The first issue of the machine and the surviving documents are separate moments in its history.

Read the source ↗

A ready beat. A choice in the hand.

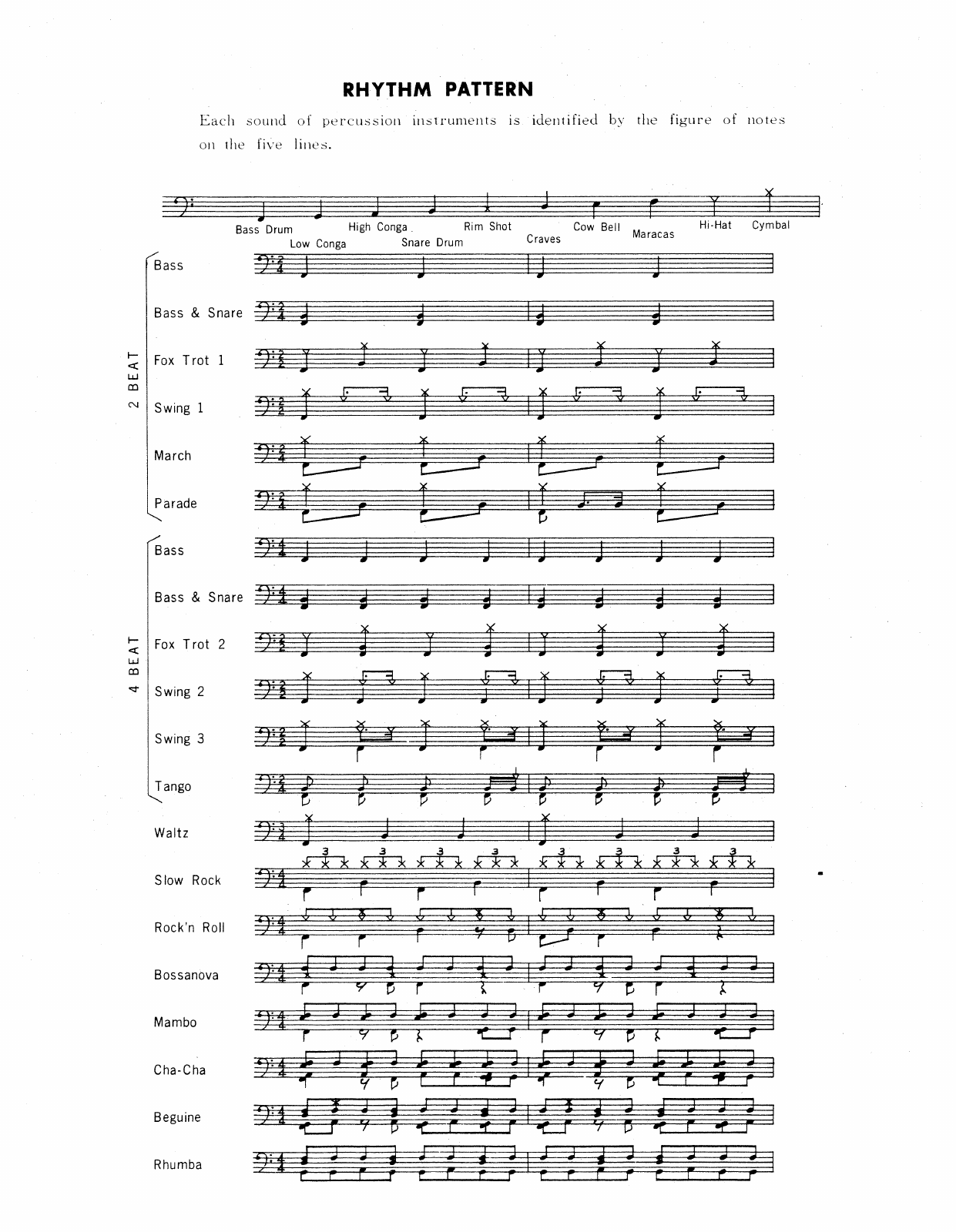

Eight named selectors give the organist Waltz, Slow Rock, Rock’n Roll, Bossa Nova, Mambo, Cha-Cha, Beguine and Rhumba. Two further buttons select 2 BEAT or 4 BEAT. A six-position variation dial changes the pattern attached to those beat buttons. Twenty examples fill the manual’s score page: eight named styles and twelve beat variations.

The selectors cancel one another in ordinary use. The manual also teaches a small physical manoeuvre: press several rhythm buttons, then let them go at the same time. More than one rhythm can remain selected. Combining a three-beat or six-beat pattern with another selection calls for listening to the relationship between their cycles.

This is arrangement by selection and combination. The musician chooses an accompaniment, balances it against the organ and can start again from the beginning of the pattern. There is no user step-writing surface in the factory operating instructions.

UP TEMPO provides a quick doubling. Turn the switch on and the rhythm runs at twice the previous tempo; turn it off to return. The separate tempo dial sets the underlying pace. A player can change the movement without hunting for a second numerical setting in the middle of a piece.

Read the source ↗

Ten voices. One route into the organ.

Bass drum, snare, hi-hat, cymbal, maracas, rim shot, cowbell, high conga, low conga and claves are the listed percussion voices. BALANCE shifts the relationship between the bass drum and brighter percussion. It does not offer a separate fader for every voice. The instrument supplies an assembled rhythm section that the keyboard player can place beneath the rest of the music.

The rear output is a low-impedance connection, rated at 10 kΩ in this manual. A rear SET VOLUME control establishes the level going into the organ, while the front volume knob remains in the player’s reach. Connecting one mixed rhythm signal is the practical task the instructions describe.

The TR-55’s rear panel offers a different arrangement, including a footswitch connection and two output-impedance choices. Those features should not be borrowed to describe the TR-33. A shared early-Roland family resemblance does not make the connectors identical.

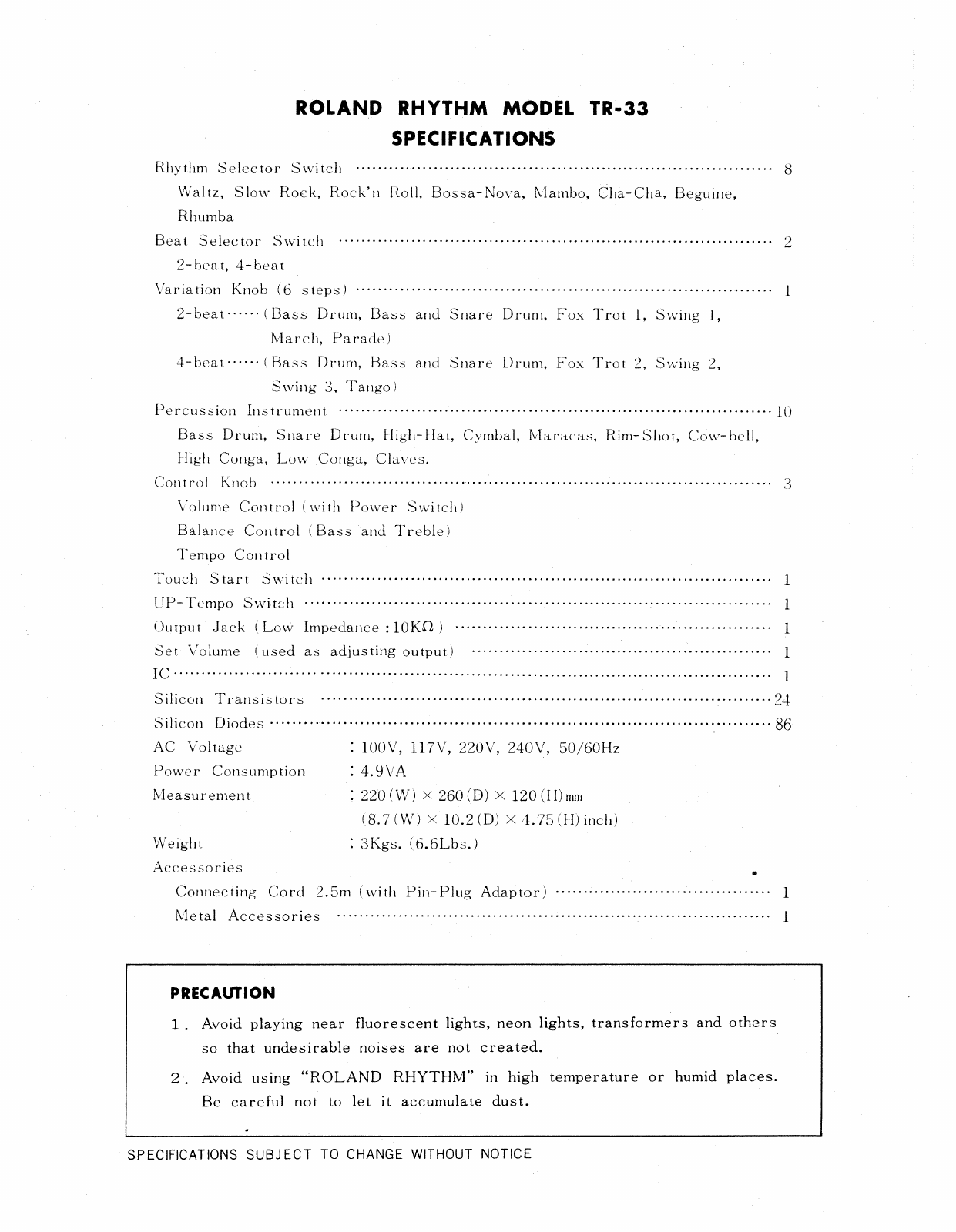

The specification page gives the cabinet as 220 mm wide, 260 mm deep and 120 mm high, at three kilograms. Its component tally is one integrated circuit, twenty-four transistors and eighty-six diodes. These figures belong to this undated owner’s-manual edition; later comparisons need their own document dates and model markings.

Read the source ↗

Under an organ. Inside American Dream.

In 2017, the TR-33 appears in the published instrumental credits for LCD Soundsystem’s American Dream. James Murphy is credited with the machine on “Call the Police” and the title track. An organ accompaniment instrument from Roland’s opening years had entered a much later, layered recording project.

The credits give us a name and two tracks to follow. They do not supply a control setting, isolate the TR-33’s signal or identify which preset Murphy selected. Those are useful questions for listening, rather than reasons to turn a possible audible resemblance into a session fact.

The movement from beneath a keyboard into that record is a good way to end this first chapter. The preset remains prepared, but the music around it has changed. An accompaniment device can become one chosen colour among other instruments, and its original working method can survive without dictating the whole arrangement.
