By July 1985, The Music People was offering the Drumfire DF-500 as a five-sensor electronic-drum system for an acoustic kit, listed at US $580. Each channel could shape a separate electronic response to the drummer’s strike. The contemporary listing documents an offer, not the first shipment.
The instrument, in view
Five voices waiting for a strike.
The photographed unit makes its architecture easy to read: five matching strips of trigger, oscillator and mixer controls. This is a 2007 archive post based on an auction image, included as later exact-object evidence—not a 1985 advertisement.
Sources (4)
An electronic voice for each drum
The DF-500 began with the drummer’s existing kit. Five sensors attached to the acoustic drums, giving five struck points their own electronic responses. The July 1985 Modern Recording notice listed independent sensitivity, oscillator decay, sweep, volume, balance, pitch and pan controls, with a US $580 price.
The familiar physical performance stayed at the centre: strike a drum, then shape the electronic voice that answered it. This was a triggerable synthesizer system rather than a box of automatically repeating rhythms.
Five strips across the panel

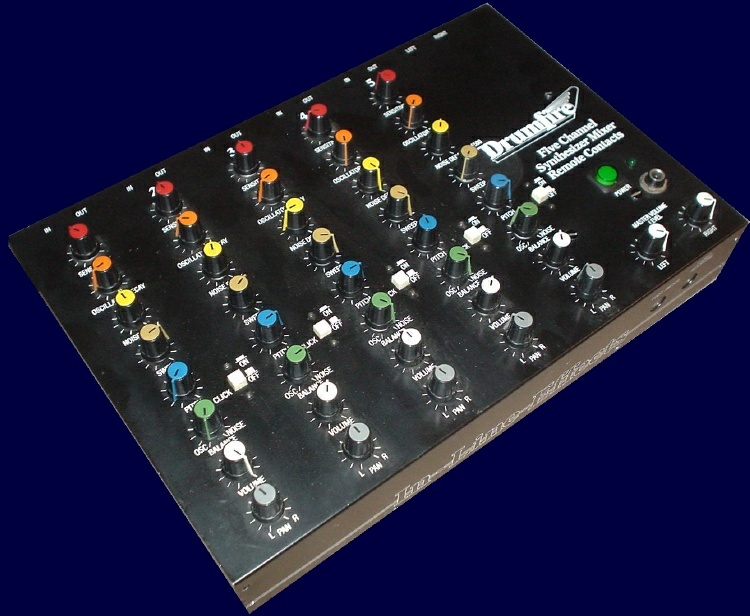

A later surviving DF-500 photograph shows five nearly identical strips of controls, with an input and output above each channel and left/right outputs at the far end. The panel makes its organisation easy to follow: move down a strip to shape one voice, then balance it against the other four.
The two photographed examples below have different histories. Matrixsynth retained its auction-derived view in April 2007; C.Y. Kong documented a surviving unit and its modifications. Those photographs make the layout visible without turning alterations to one unit into factory specifications.
From contacts to pads
By October 1986, Canadian Musician described Drumfire as a complete electronic-drum line, with two pad sizes offered for the DF-500. The later notice widens the picture beyond contacts on an acoustic set: the module could sit at the centre of a pad-based playing setup. It does not establish the contents of every earlier package.
Pitch in the performance
Miles Francis gave the DF-500 a specific recording role on “Sophomore Slump”. In a first-person interview, he described tracking it for the song’s “kooky electro tom fills”, manipulating pitch as he played. Here the row of controls becomes part of the musical gesture: the percussion is struck and its pitch moved during the take.
It is an account of that recording, not evidence for every sound on the release or a general list of Drumfire users.
On Pink Fink’s record
Pink Fink name a Drumfire DF500 among the instruments on their self-titled release. That album-level credit gives the instrument another documented working life. It does not identify individual tracks, isolate a channel in the finished mix or establish the settings used.
Sources
The visual archive
Further visual evidence.
These displayed records are labelled by their documented role, date and source; source-only records are listed separately below.
